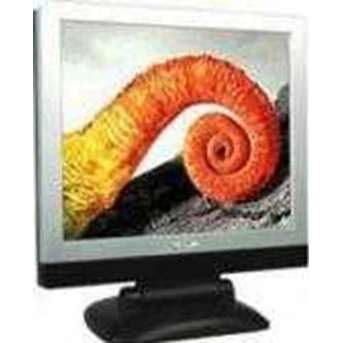

Detail Prolink Chameleon 170Pro
Features and Specifications
Panel :
LCD Panel Size: 17” TFT
Pixel Pitch: 0.264 x 0.264
Resolution: SXGA 1280x1024
Display Area: 337.9 x 270.3mm
Display Color: 16.7M
Contrast Ratio: 400:1 or 500 :1(Optional)
Brightness: 250cd/m²
Response Time: 10msec/15msec
View Angle:
Horizontal: ±85°
Vertical :±85°
Back light: 2CCFT / 4CCFT
Lamp Life: 50,000 Hours
Propose Resolution:1280x1024 @ 60Hz/75HZ
Input Signal
Input Signal: Analog RGB 0.7Vp-p TTL Interface
Scan Frequency
Horizontal : 31K~80KHZ
Vertical : 50~75HZ
Terminal
RGB Input: 15 Pin D-SUB
Video Input: Optional
Power: 12V / 4A (48W)
Control Function
Base: Power, Menu, Select, Up, Down
OSD: Brightness, Contrast, Autotune, Clock, Phase, H/V Position Red, Green, Blue, Recall, Exit
Plug & Play: VESA, DDC1 & DDC 2B Standard
Safety Standard: UL/FCC, FDA, CE, CNS
EMC: FCC/CE
Ergonomics: TCO95 (Optional)
Power Management: VESA
Certificate: ISO 9001
Power
Voltage: AC 100V~240V
Frequency: 50~60HZ
Consumption Power (W) Working: 40W
Consumption Power (W) Stand By: 5W
Weight Net: 5.2kg
Dimension Packaging (WxHxD) 485x185x530mm
Working Environment
Temperature
Operating: 0 ºC ~ 40 ºC
Storage: -20 ºC ~ 60 ºC
Humidity: 10%~85%
Remarks:
Chameleon 170S: Standard without speaker
Chameleon 170A: With Speaker
Chameleon 170V: With Speaker and A/V/S-Video
Chameleon 170T: With Speaker, A/V/S-Video and TV Tuner
Chameleon 170Pro: with Touch Screen
